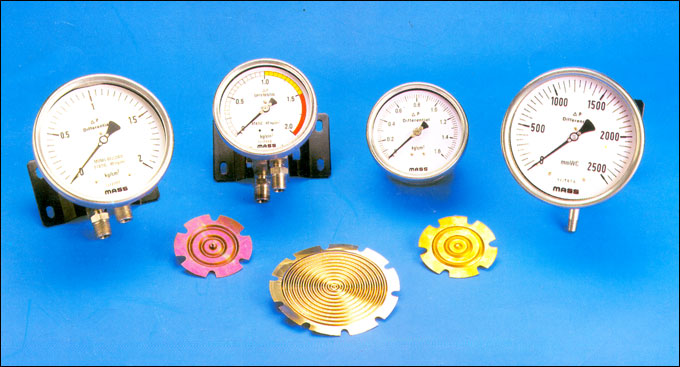

Single Diaphragm Differential Pressure Gauges
'MASS1 make differential pressure gauges are used to measure the pressure difference between two lines. Which can be directly indicated on dial. For ranges up to 6000 mmWC Max. Static pressure is 25kg/cm2 and for ranges 1 kg/cm2 to 10kg/cm2 Max. Static pressure is 40kg/cm2.

'MASS' make differential pressure gauges are suitable for Noncorrosive and Noncrystallizing gaseous and liquid media and that are not highly viscous.

'MASS' make differential pressure gauges are widely used across the Filters for Liquid control systems, Pharmaceutical industries, Chemicals, Petrochemicals, Fertilizers, Refineries and all Process industries.



Model Range Max. Static Pressure In Kg/cm2

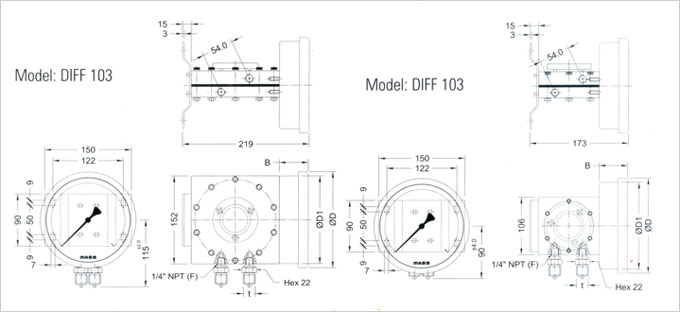

DIFF 103 0 - 250 to 0 - 6000 mmWc 25
DIFF 104 0-1 to0-10 Kg/cm2 40

Specification :
Dial Size 115mm & 150mm
Accuracy + - 2% of full scale
Pressure Element SS 316 Diaphragm
Mounting Flange Material SS 316
Diaphragm Sealing Ring FKM (Viton) / Teflon
Case M.S./ SS 304 snap action bayonet type IP - 65
Dial Al. Black marking on white background
Movement SS 304, SS 316
Pointer Micrometer zero adjustment type
Window Toughened / Shatter proof glass
Process Connection 1/4" NPT (F)
Mounting Direct Bottom entry & Surface with back flange.
Ranges 0 250 mmWC up to 10 kg/cm2
Operating Temperature -25 to 65°C Max.
Pressure Entries Identification As 'HP1' high pressure & 'LP' low pressure
Extra fitments Electrical contacts & Manifolds
