| Dial Size |
65mm, 100mm, 150mm & 250mm |
| Accuracy |
+ - 1% of F.S.D |
| Bourdon Tube |
S.S. 316/Brass/Monel/Phosphor Bronze |
| Movement |
S.S. 304/S.S. 316/Brass |
| Socket |
S.S. 316/Brass/Monel/Phosphor Bronze |
| Case |
S.S. 316 snap action bayonet type/Die cast Aluminium Weatherproof with screwed outer bezel, Stoved enamel black finish. |

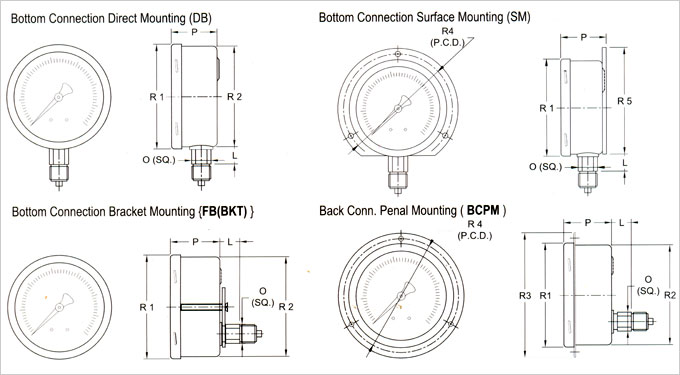

| Mounting |
Direct with bottom Entry/Direct with back entry/Flush Panel with back entry(Three hole panel or bracket type)/Surface with bottom entry. |
| Thread Connection |
1/8", 1/4", 3/8", 1/2" BSP/BSPT/NPT (M) |
| Window |
Acrylic Glass/Glass/Toughened Glass/ Shatterproof Glass. |
| Joints |
S.S. Bourdon tube tip and the socket ends are ARGON ARC WELDED and phosphor bronze bourdon tubes are silver brazed/soldered. Bourdon tubes are heat-treated and stress relieved. |
| Extra Fitments |
Micro Zero Adjustment Pointer/ Neoprene blow out disc. |
| Range |
Pressure upto 1400 kg/sq.cm, Vacuum & Compound Ranges. |
